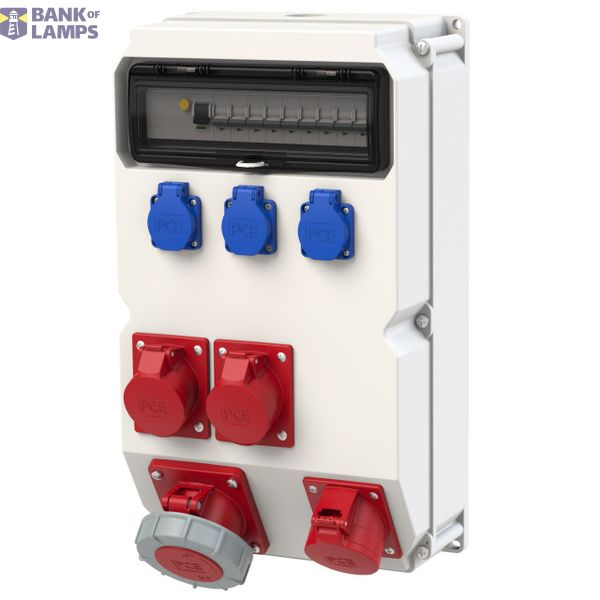

Distribution box plastic wall mounted SÖLDEN BV 63/5 32/5 2x16/5 3xSSD M40ÖoIP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted SÖLDEN BV 63/5 32/5 2x16/5 3xSSD M40ÖoIP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399295256

Other Technical data

Colour	Grey
Width	297 mm
Height	520 mm
Depth	165 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
CEE socket outlet 63 A	1x63A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

thermoplastic insulated distribution box - wall mounting series SOLDEN IP54 520x297x165 14TE
1x thrilling hole M40 on top, 1x blind cable gland M40 from bottom
1xCEE-socket 63A 5p 400V protected with prefuse of supply line
1xCEE-socket 32A 5p 400V protected with 1xMCB 32A 3p C
2xCEE-socket 16A 5p 400V protected with 1xMCB 16A 3p C
3x socket DIN49440 16A 250V IP54 protected with 3xMCB 16A 1p C
1xRCD 63A/4/0.03A (TYP A 63AT) over all outlets
MCB and RCD made by Eaton ÖVE / VDE
distribution box is wired on terminals up to max.5x25qmm (5x16qmm flexible wire!)
