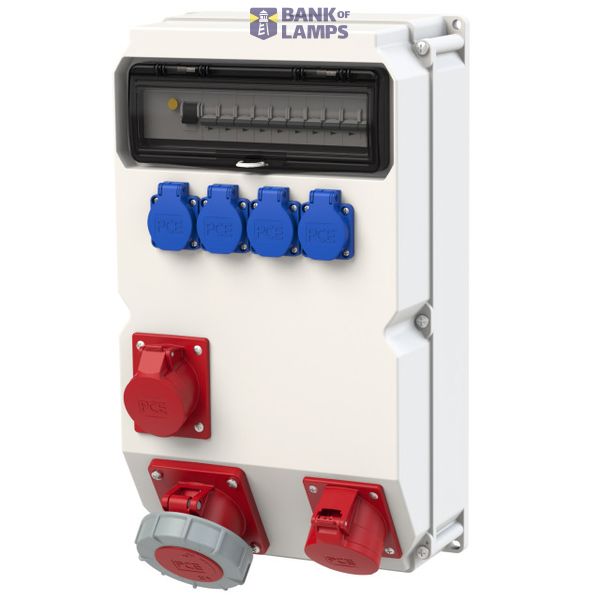

Distribution box plastic wall mounted SÖLDEN BV 63/5 32/5 16/5 4xSSD M40Öo IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted SÖLDEN BV 63/5 32/5 16/5 4xSSD M40Öo IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399277672

Other Technical data

Colour	Grey
Width	297 mm
Height	520 mm
Depth	165 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
CEE socket outlet 63 A	1x63A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	6

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box model SÖLDEN IP54 520x297x165 14TE
1x drilling hole M40 on top, 1x blind cable gland M40 from bottom
1xCEE-socket 63A 5p 400V protected with pre-fuse of supply line - not with RCD
1xCEE-socket 32A 5p 400V fused with 1xMCB 32A 3p C
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
4xSK-sockets 16A 250V IP54 fused with 4xMCB`s 16A 1p C
1xRCD 63A/4/0.03A (TYP A 63AT) over all 32A and 16A outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire!)
