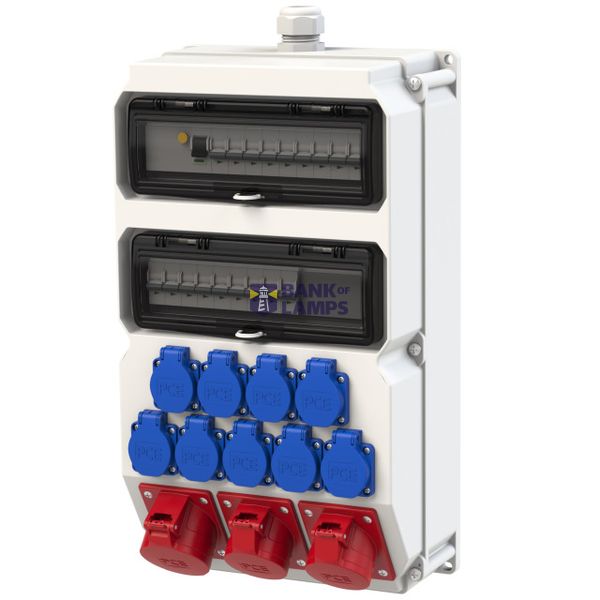

Distribution box plastic wall mounted Sölden BV 32/5 2x16/5 9xSSD M32oBVu H Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted Sölden BV 32/5 2x16/5 9xSSD M32oBVu H Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399283864

Other Technical data

Colour	Grey
Width	297 mm
Height	520 mm
Depth	165 mm
Number of socket outlets with protective contact (type F)	9
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	12

Downloads

Product data sheet

Description

Kunstst.-Wandverteiler Modell SÖLDEN IP54 520x297x165 2x14TE BOT
1xM32 Verschraubung oben (Kabeldurchm. 18-25mm PG29) grau
1xBlindverschraubung M32 unten
1xCEE-Steckdose 32A 5p 400V abgesichert ü. 1xLS 32A 3p C
2xCEE-Steckdose 16A 5p 400V abgesichert ü. 2xLS 16A 3p C
9xSK-Steckdose 16A 250V IP54 abgesichert ü. 9xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 63AT) über alle Ausgänge
Leitungsschutzschalter Fabrikat Eaton ÖVE / VDE
Verteiler auf HKL-Klemme (max.5x25qmm/5x16qmmYF!) verdrahtet
