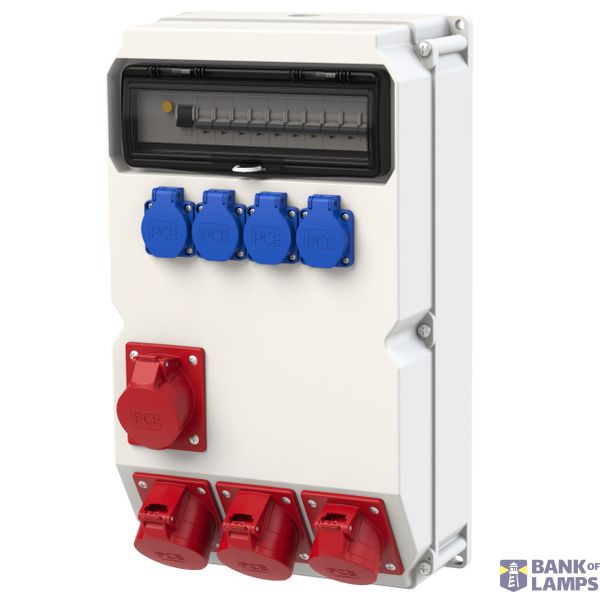

Distribution box plastic wall mounted SÖLDEN BV 2x32/5 2x16/5 4xSSD M32ÖoBVuIP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted SÖLDEN BV 2x32/5 2x16/5 4xSSD M32ÖoBVuIP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399975493

Other Technical data

Colour	Grey
Width	297 mm
Height	520 mm
Depth	165 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	6

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box model SÖLDEN IP54 520x297x165 14TE
1x drilling hole on top, 1 x blind cable gland M32 from bottom
2xCEE-socket 32A 5p 400V fused with 1xMCB 32A 3p C
2xCEE-sockets 16A 5p 400V fused with 1xMCB 16A 3p C
4xSK-sockets 16A 250V IP54 fused with 4xMCB`s 16A 1p B
1xRDC I 63A/4/0.03A (TYP A 40AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is wired on HKL-Klemme (max.5x25qmm/5x16qmmflexible wire!)
