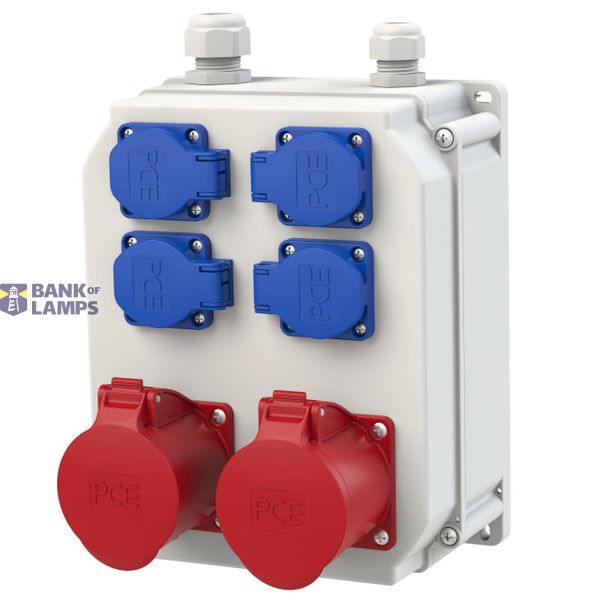

Distribution box plastic wall mounted Schwaz IV 2x32/5 4xSSD M20oM25o 2xVC5p

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted Schwaz IV 2x32/5 4xSSD M20oM25o 2xVC5p
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399614569

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	112 mm
Number of socket outlets with protective contact (type F)	4
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 32 A	2x32A5p400V
Power supply/connection possibility	1 cable (branch line)
Type of mains connection	Other

Downloads

Product data sheet

Description

Kunstst.-Wandverteiler Modell SCHWAZ IP54 255x204x112
1xM25 Verschraubung oben (Kabeldurchm. 13-18mm PG21) grau
1xM20 Verschraubung oben (Kabeldurchm. 10-14mm PG16) grau
2xCEE-Steckdose 32A 5p 400V abgesichert d. Vorsicherung Zuleitung
4xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsicherung Zuleitung
2xCEE-Dosen 32/5 auf VC-Klemme 5polig verdrahtet
4xSSD auf VC-Klemme 5polig verdrahtet
