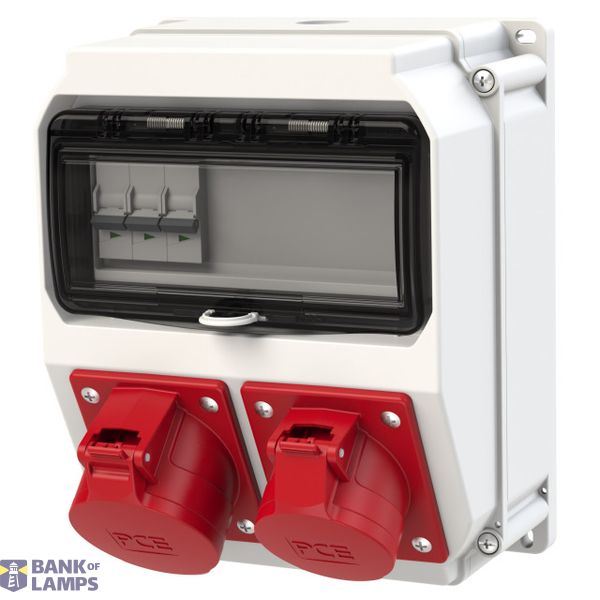

Distribution box plastic wall mounted LOFER7 IV 32/5 16/5 M25ÖoBVu HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LOFER7 IV 32/5 16/5 M25ÖoBVu HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399246159

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	140 mm
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	1

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box model LOFER7 IP54 255x204x140 9TE
1x drilling hole M25 on top, 1x blind cable gland M25 from bottom
1xCEE-socket 32A 5p 400V protected with pre-fuse of supply line
1xCEE-socket e 16A 5p 400V fused with 1xMCB 16A 3p C
MCB is Eaton ÖVE / VDE branded
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire!)
Label: "Additional protection required by RCCB on supply side!"
