Distribution box plastic wall mounted LOFER7 IV 2x16/5 M25ÖoBVu HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LOFER7 IV 2x16/5 M25ÖoBVu HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399975769

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	140 mm
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	4x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	2

Downloads

Product data sheet

Description

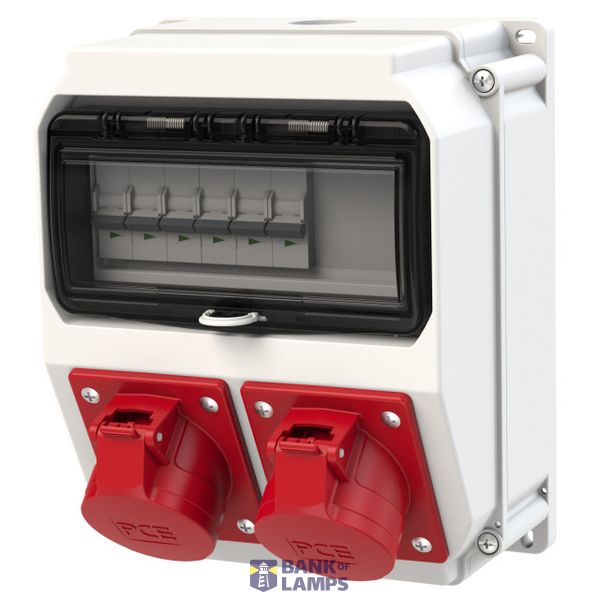

thermoplastic distribution box, wall mounted, model LOFER7 IP54 255x204x140 9TE
1xdrilling hole M25 on top, 1x blind cable gland M25 from bottom
2xCEE-sockets 16A 5p 400V fused with 2xMCB`s 16A 3p C
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire)
MCB`s are brand Eaton ÖVE / VDEare PCE VDE
