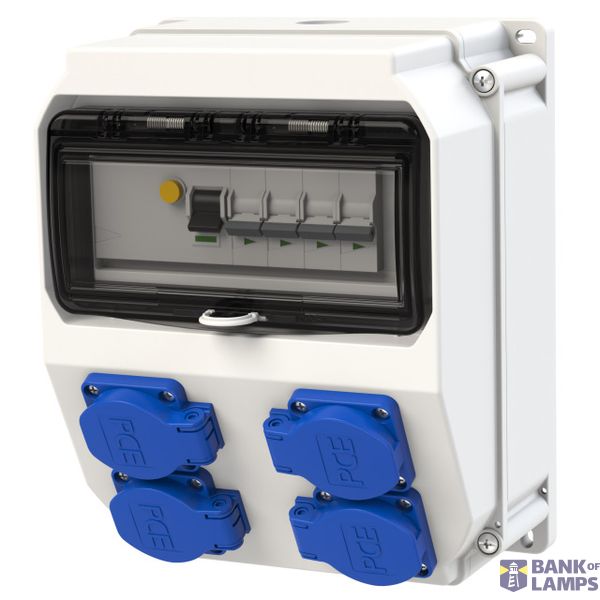

Distribution box plastic wall mounted LOFER7 BV 4xSSD M25ÖoBVu HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LOFER7 BV 4xSSD M25ÖoBVu HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399975684

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

Kunstst.-Wandverteiler Modell LOFER7 IP54 255x204x140 9TE
1xBohrung M25 oben, 1xBlindverschraubung M25 unten
4xSK-Steckdose 16A 250V IP54 abgesichert ü. 4xLS 16A 1p B
1xFI 40A/4/0.03A (TYP A 25AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler auf HKL-Klemme (max.5x25qmm/5x16qmmYF!) verdrahtet
