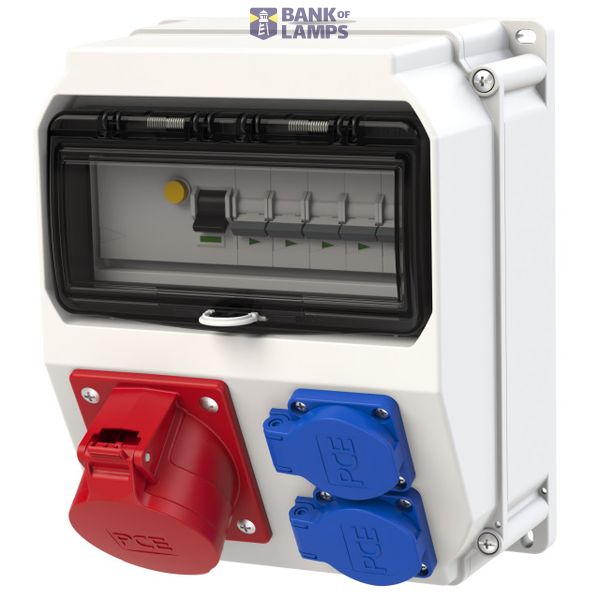

Distribution box plastic wall mounted Lofer7 BV 32/5 2xSSD M32ÖoBVu HKL Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted Lofer7 BV 32/5 2xSSD M32ÖoBVu HKL Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399294570

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	3

Downloads

Product data sheet

Description

thermoplastic distribution box series LOFER7 IP54 255x204x140 9TE
1xM32 on the top, 1x cable gland M32 at the bottom
1xCEE socket 32A 5p 400V protected with 1x MCB 32A 3p C
2xSchuko socket 16A 250V IP54 protected with 2x MCB 16A 1p B
1x RCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB and RCD are made by Eaton ÖVE/VDE
distribution box is ready wired on for using
