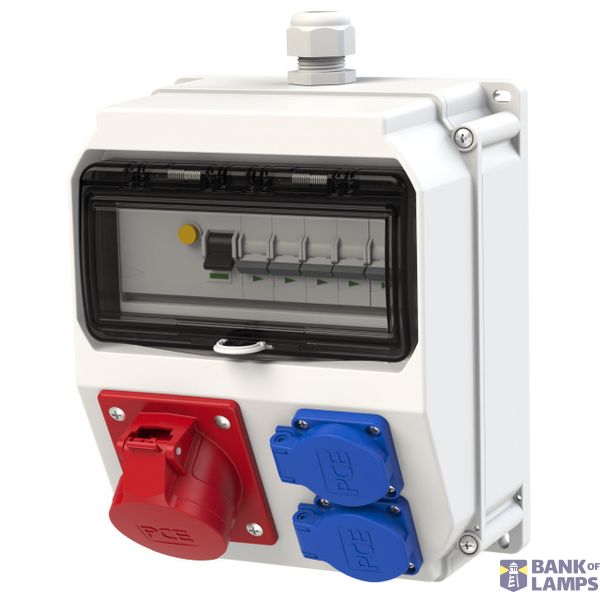

Distribution box plastic wall mounted Lofer7 BV 16/5 2xSSD M25oBVu HKL Pc

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted Lofer7 BV 16/5 2xSSD M25oBVu HKL Pc
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399019555

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	3

Downloads

Product data sheet

Description

Kunstst.-Wandverteiler Modell LOFER7 IP54 255x204x140 9TE
1xM25 Verschraubung oben (Kabeldurchm. 13-18mm PG21) grau
1xBlindverschraubung M25 unten
1xCEE-Steckdose 16A 5p 400V abgesichert ü. 1xLS 16A 3p C
2xSK-Steckdose 16A 250V IP54 abgesichert ü. 2xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 40AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler auf HKL-Klemme (max.5x25qmm/5x16qmmYF!) verdrahtet
