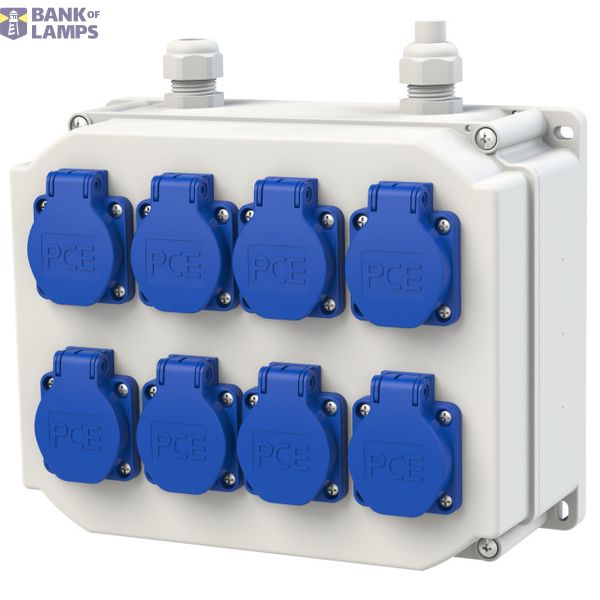

Distribution box plastic wall mounted LOFER4 IV 8xSSD 2M20o VC3p hor. IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LOFER4 IV 8xSSD 2M20o VC3p hor. IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399944703

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	112 mm
Number of socket outlets with protective contact (type F)	8
Protection	None
Housing material	Plastic
Power supply/connection possibility	2 cables (ring line)

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box series LOFER4 IP54 255x204x112 0TE
2xM20 cable gland on top (cable diameter 10-14 mm PG16) grey
1x with blind plug
8x Schuko sockets 16A 250V IP54 blue not protected
distribution box is ready wired on Vario connector 3p 10qmm for connecting through
