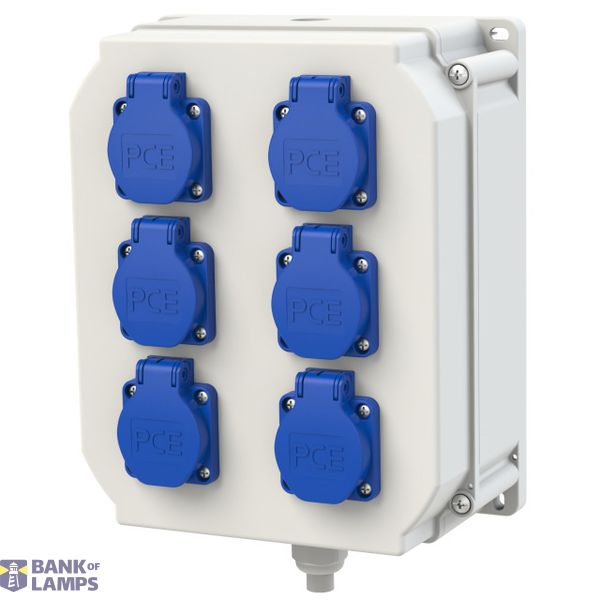

Distribution box plastic wall mounted LOFER4 IV 6xSSD M20ÖoM20uBS VC5p IP54 IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LOFER4 IV 6xSSD M20ÖoM20uBS VC5p IP54 IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399890406

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	112 mm
Number of socket outlets with protective contact (type F)	6
Housing material	Plastic
Power supply/connection possibility	2 cables (ring line)

Downloads

Product data sheet

Description

thermoplastic insulated distribution box - wall mounting series LOFER4 IP54 255x204x112 0TE
1x drilling hole M20 on top
1x cable gland M20 with blind caps from bottom
6x schuko sockets 16A 250V IP54 without fuse
distribution box is wired on Vario-Connector 5p 10qmm
