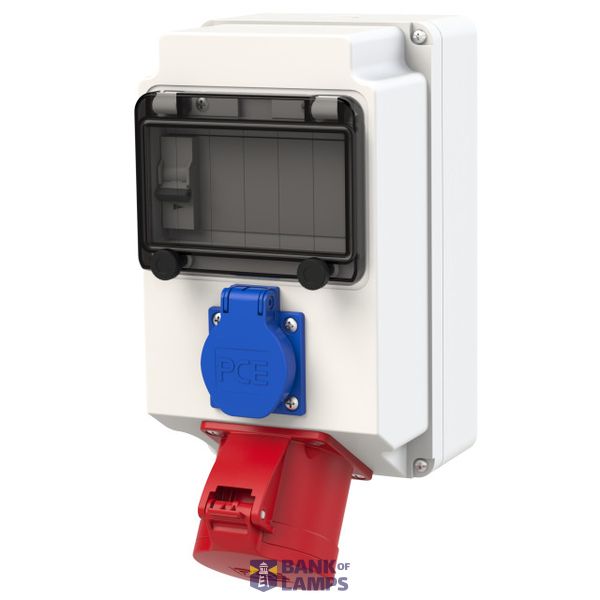

Distribution box plastic wall mounted LECH IV 32/5 SSD M25Öo VC Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LECH IV 32/5 SSD M25Öo VC Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399056857

Other Technical data

Colour	Grey
Width	130 mm
Height	230 mm
Depth	152 mm
Number of socket outlets with protective contact (type F)	1
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	1

Downloads

Product data sheet

Description

thermoplastic distribution box series LECH IP54 230x130x152
1XM25 cable gland on the top/2xM25 cable gland at the bottom
1x CEE socket 32A 5p 400V protected with pre fusing supply chain
1x Schuko socket 16A 250V IP54 portected with 1x MCB 16A 1p B
MCB is made by PCE VDE
distribution box is ready wired on Vario-Connector 5polig 10qmm
