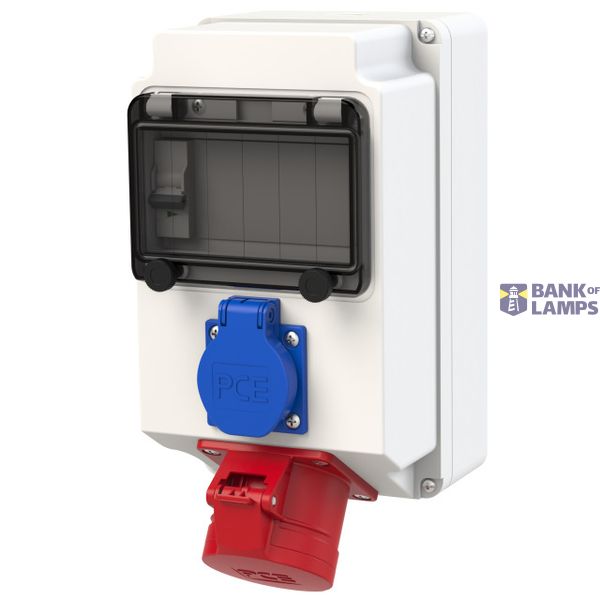

Distribution box plastic wall mounted LECH IV 16/5 SSD M25Öo VC5p Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LECH IV 16/5 SSD M25Öo VC5p Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399969652

Other Technical data

Colour	Grey
Width	130 mm
Height	230 mm
Depth	152 mm
Number of socket outlets with protective contact (type F)	1
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	1

Downloads

Product data sheet

Description

thermoplastic distribution box wall mounted model LECH IP54 230x130x152
1xM25 thread on top / 2xopenings M25 from bottom (locked)
1xCEE-socket 16A 5p 400V protected with pre-fuse of supply line
1xSK-socket 16A 250V IP54 fused with 1xMCB 16A 1p B
MCB is PCE VDE branded
distribution box is wired on vario-connector 5poles 16qmm
Label: "Additional protection by residual current circuit breaker supply side is required!"
