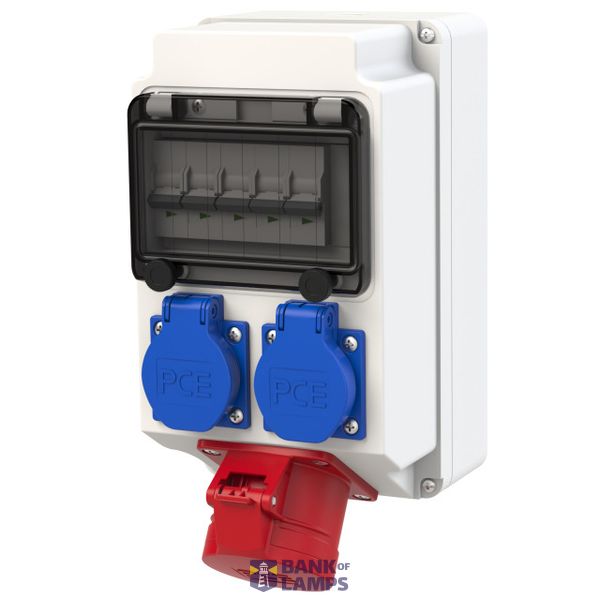

Distribution box plastic wall mounted LECH IV 16/5 2xSSD M25Öo VC Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LECH IV 16/5 2xSSD M25Öo VC Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399969324

Other Technical data

Colour	Grey
Width	130 mm
Height	230 mm
Depth	152 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	3

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box model LECH IP54 230x130x152
1xM25 thread on top / 2xthrough holes M25 on bottom (closed)
1xCEE-sockets 16A 5p 400V fused with 1xMCB 16A 3p C
2xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p B
MCB´s are Eaton ÖVE / VDE branded
distribution box is wired on Vario-Connector 5polig 10qmm!
Label: "Additional protection required by RCCB on supply side!"
