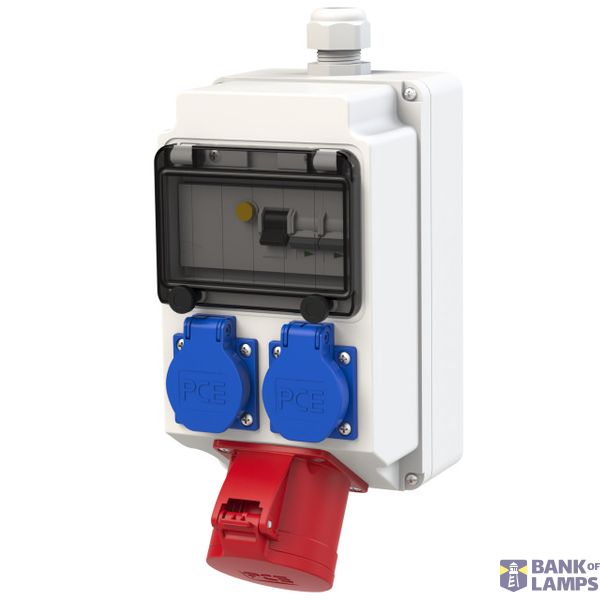

Distribution box plastic wall mounted Lech BV 32/5 2xSSD M25o VC Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted Lech BV 32/5 2xSSD M25o VC Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399094439

Other Technical data

Colour	Grey
Width	130 mm
Height	230 mm
Depth	152 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	2

Downloads

Product data sheet

Description

Kunststoff-Wandverteiler Baureihe LECH IP54 230x130x152
1xM25 Verschraubung oben (Kabeldurchm. 13-18mm PG21) grau
1xCEE-Steckdose 32A 5p 400V abgesichert d. Vorsicherung Zuleitung
2xSK-Steckdose 16A 250V IP54 abgesichert ü. 2xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 40AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler auf Vario-Connector 5polig 10qmm verdrahtet
