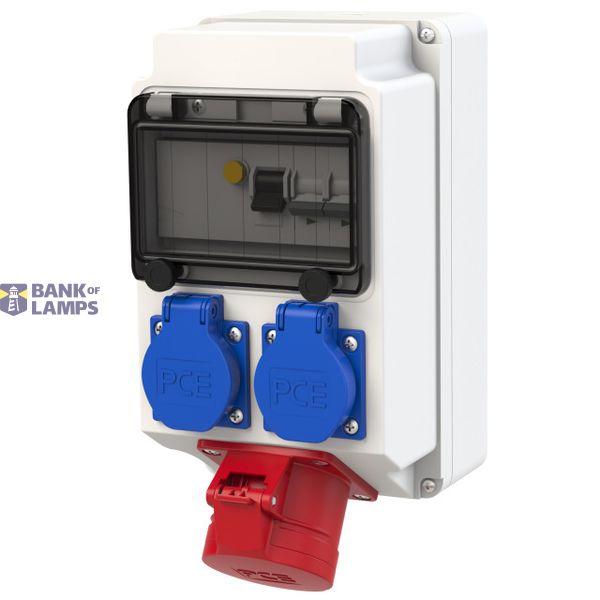

Distribution box plastic wall mounted LECH BV 16/5 2xSSD M25Öo VC Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted LECH BV 16/5 2xSSD M25Öo VC Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399969331

Other Technical data

Colour	Grey
Width	130 mm
Height	230 mm
Depth	152 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	2

Downloads

Product data sheet

Description

plastic distribution box wall mounted series LECH IP54 230x130x152
1xM25 thread on top / 2x openings M25 bottom (closed)
1xCEE-socket 16A 5p 400V protected with pre-fuse of supply line
2xSchuko sockets 16A 250V IP54 fused with 2xMCB 16A 1p B
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCB and RCD made by Eaton ÖVE / VDE
distribution box is ready wired on Vario-Connector 5poles10qmm
