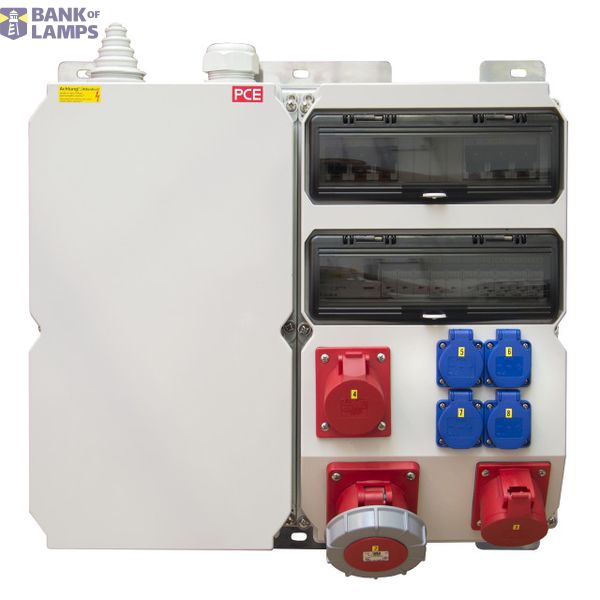

Distribution box plastic wall mounted KOMBI BV 63/5 32/5 16/5 4xSSD NH KT3 IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted KOMBI BV 63/5 32/5 16/5 4xSSD NH KT3 IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399273384

Other Technical data

Colour	Grey
Width	444 mm
Height	520 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch/D0-system
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
CEE socket outlet 63 A	1x63A5p400V
Power supply/connection possibility	Other
Number of miniature circuit breakers	6
Type of mains connection	Other

Downloads

Product data sheet

Description

thermoplastic combination IP54 consists of:
1x thermoplastic wall mounted distribution box model SÖLDEN IP54 520x297x165 0TE
1x thermoplastic wall mounted distribution box model SÖLDEN IP54 520x297x165 2x14TE
mounted side by side on 2x Wall brackets stainless steel
1xKT3 cable sleeve on top (cable diam.: 14-54mm) / cable relief provided by the customer
1xM50 cable gland on top (cable diam.: 32-38mm PG42) grey
1xNH-fuse switch 00 100A 3p ( fuses included) for external output
1xCEE-socket 63A 5p 400V IP67 fused with 1x Tytan D02 63A 3p
1xCEE-socket 32A 5p 400V fused with 1xMCB 32A 3p C
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
4xSK-sockets 16A 250V IP54 fused with 4xMCB`s 16A 1p C
1xRCD 63A/4/0.03A (TYP A 63AT) over all 16+32A outlets
pre-fused with 1XTytan D02 63A 3p
Tytan MCB and RCD are Eaton ÖVE VDE branded
Distributor connection terminal plate 3p (l1-L3) 35 - 120 mm² wired
Distributor copper bars conductor terminal (N&PE) 16 - 120 mm² wired
