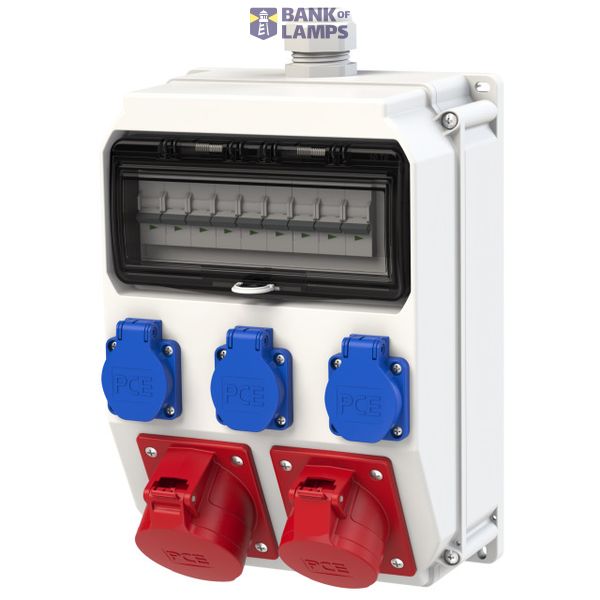

Distribution box plastic wall mounted ANIF7 IV 32/5 16/5 3xSSD M32oBVu HKL IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted ANIF7 IV 32/5 16/5 3xSSD M32oBVu HKL IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399265181

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box series ANIF7 IP54 320x222x140 10TE
1xM32 cable gland on top (cable diameter 18-25mm PG29) grey
1x blind cable gland M32 on the bottom
1xCEE-socket 32A 5p 400V protected over 1xMCB 32A 3p C
1xCEE-socket 16A 5p 400V protected over 1xMCB 16A 3p C
3xSK-socket 16A 250V IP54 protected over 3xMCB 16A 1p C
MCB made by Eaton ÖVE / VDE
distribution box is wired on terminals up to 5x25qmm/5x16qmm flexible wire
label: "additional protection through RCD required supply-sides!"
