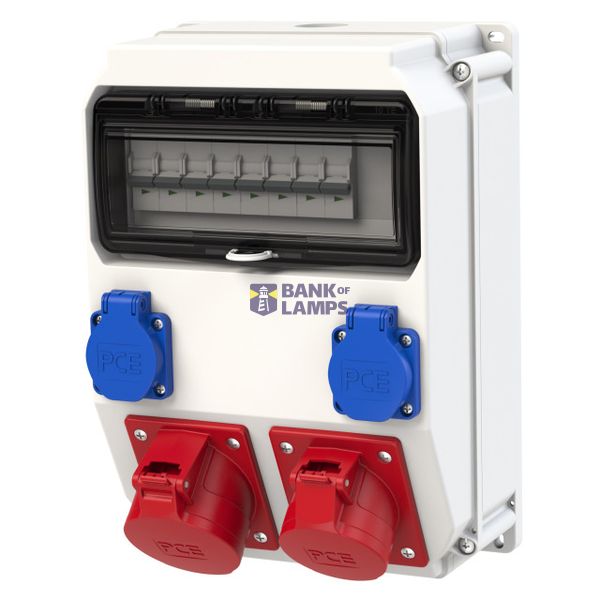

Distribution box plastic wall mounted ANIF7 IV 32/5 16/5 2xSSD M32ÖoBVu HKL IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted ANIF7 IV 32/5 16/5 2xSSD M32ÖoBVu HKL IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399951909

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box model ANIF7 IP54 320x222x140 10TE
1x drilling hole M32 on top, 1 x blind cable gland M32 from bottom
1xCEE-socket 32A 5p 400V fused with 1xMCB 32A 3p C
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
2xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p C
MCB`s are Eaton ÖVE / VDE branded
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire!)
Label: "Additional protection required by RCCB on supply side"
