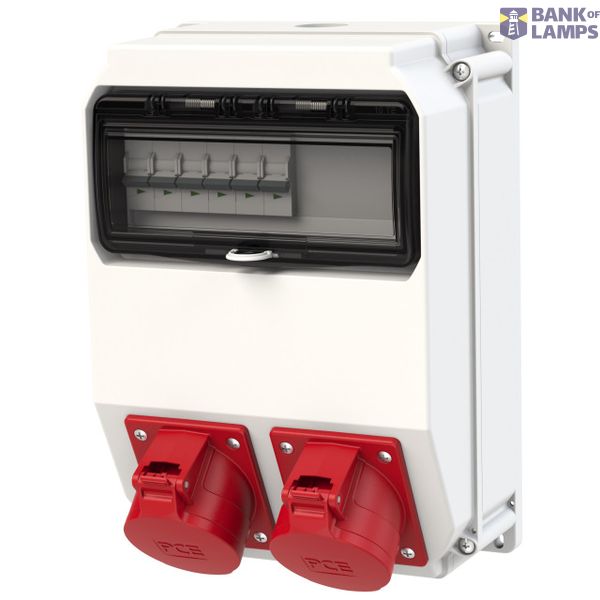

Distribution box plastic wall mounted ANIF7 IV 2x32/5 M32ÖoBVu HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted ANIF7 IV 2x32/5 M32ÖoBVu HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399294600

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	140 mm
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 32 A	2x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	2

Downloads

Product data sheet

Description

thermoplastic wall mounted model ANIF7 IP54 320x222x140 10TE
1x drilling hole M32 on top, 1x blind cable gland M32 from bottom
2xCEE-sockets 32A 5p 400V fused with 2xMCB`s 32A 3p C
MCB`s are Eaton ÖVE / VDE branded
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire!)
Label: "Additional protection required by RCCB on supply side"
