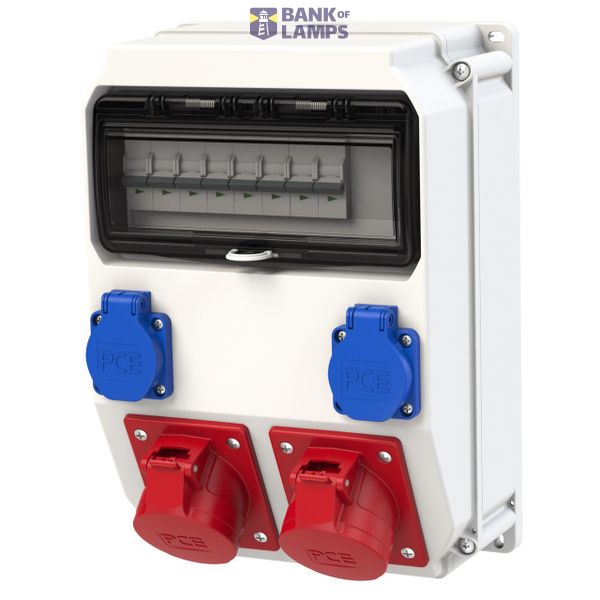

Distribution box plastic wall mounted ANIF7 IV 2x16/5 2xSSD M32ÖoBVu HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted ANIF7 IV 2x16/5 2xSSD M32ÖoBVu HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399950162

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

thermoplastic distribution box wall mounted series ANIF7 IP54 320x222x140 10TE
1xdrilling M32 on top, 1xcable gland M32 on the bottom
2xCEE-socket 16A 5p 400V protected over 2xMCB 16A 3p C
2xSK-socket 16A 250V IP54 protected over 2xMCB 16A 1p B
MCB made by Eaton ÖVE / VDE
distibution box is ready wired on terminals up to max.5x25qmm (flexible wire 5x16qmm)
label: "additional protection over RCD supply-sides required!"
