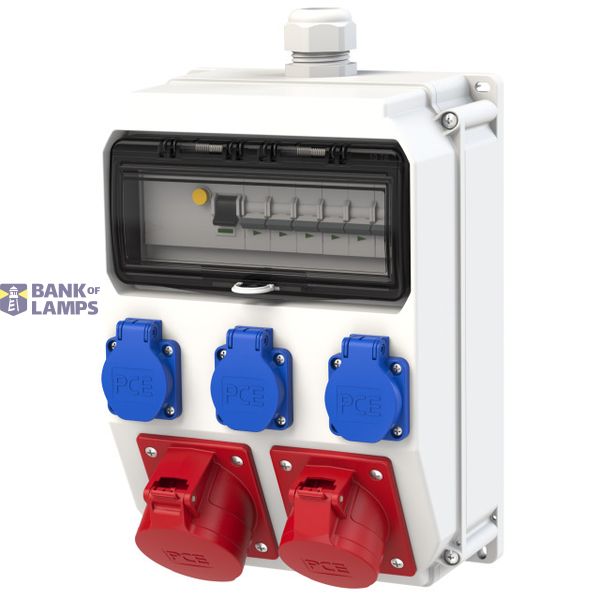

Distribution box plastic wall mounted Anif7 BV 32/5 16/5 3xSSD M32oBVu HKL Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted Anif7 BV 32/5 16/5 3xSSD M32oBVu HKL Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399975677

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box model ANIF7 IP54 320x222x140 10TE
1xM32 cable gland on top (cable dimam.: 18-25mm PG29) grey
1xblind cable gland M32 from bottom
1xCEE-socket 32A 5p 400V protected with pre-fuse of supply line
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
3xSK sockets 16A 250V IP54 fused with 3xMCB`s 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution bhox is wired on terminal up to (max.5x25qmm/5x16qmm flexible wire!)
