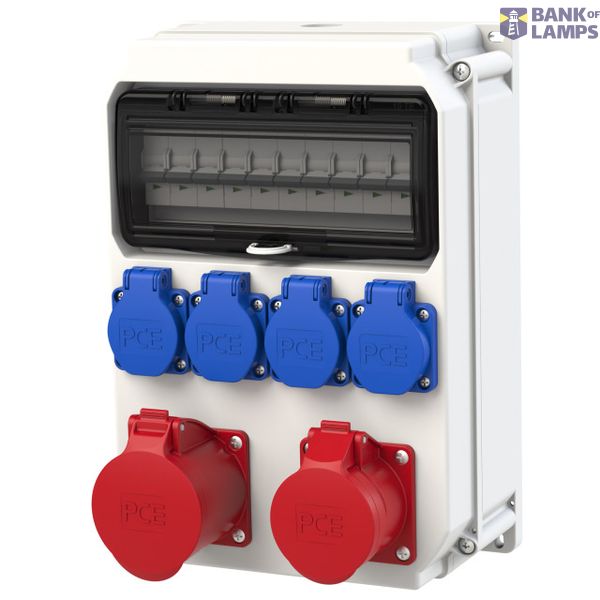

Distribution box plastic wall mounted ANIF4 IV 32/5 16/5 4xSSD M32ÖoBVu Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted ANIF4 IV 32/5 16/5 4xSSD M32ÖoBVu Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399294532

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	114 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	6

Downloads

Product data sheet

Description

thermoplastic distribution box, wall mounted model ANIF4 IP54 320x222x114 10TE
1x hole M32 on top, 1x blind cable gland M32 from bottom
1x CEE-socket 32A 5p 400V fused with 1xMCB 32A 3p C
1x CEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
4xSK-sockets 16A 250V IP54 fused with 4xMCB`s 16A 1p B
MCBs and made by Eaton ÖVE / VDE
distribution box is wired on vario-connector 5p 10qmm
Label: "Additional protection by residual current circuit breaker supply side is required"
