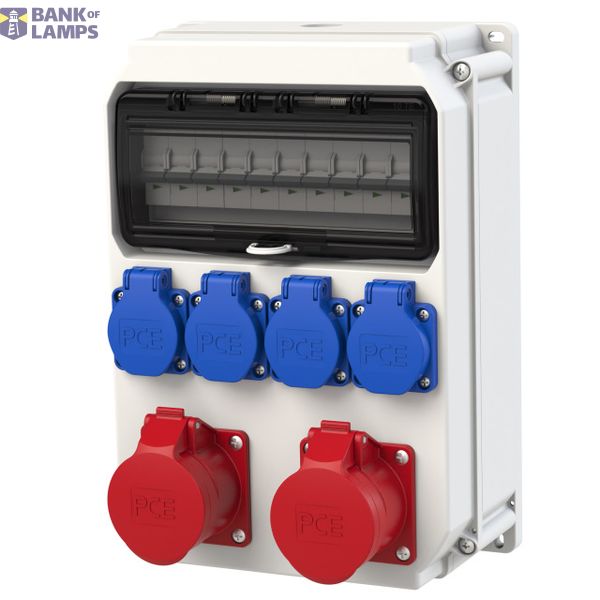

Distribution box plastic wall mounted ANIF4 IV 2x16/5 4xSSD M25ÖoBVu VC5p IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted ANIF4 IV 2x16/5 4xSSD M25ÖoBVu VC5p IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399891908

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	114 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	6

Downloads

Product data sheet

Description

Kunstst.-Wandverteiler Modell ANIF4 IP54 320x222x114 10TE
1xBohrung M25 oben, 1xBlindverschraubung M25 unten
2xCEE-Steckdose 16A 5p 400V abgesichert ü. 2xLS 16A 3p C
4xSK-Steckdose 16A 250V IP54 abgesichert ü. 4xLS 16A 1p B
Leitungsschutzschalter Fabrikat Eaton ÖVE / VDE
Verteiler auf Vario-Connector 5polig 10qmm verdrahtet
Etikett: "Zusatzschutz durch FI-Schutzschalter versorgungsseitig erforderlich!"
