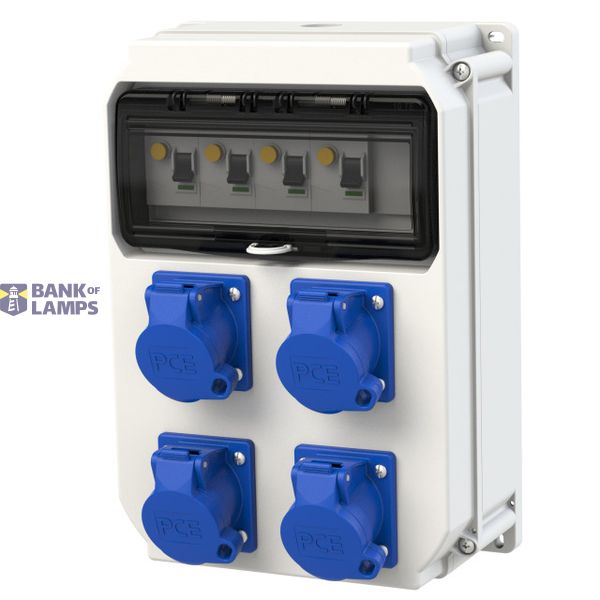

Distribution box plastic wall mounted ANIF4 BV 4x16/3ab M25u VC3p Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted ANIF4 BV 4x16/3ab M25u VC3p Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399323065

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	114 mm
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	4x16A3p230V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

thermoplastic distribution box wall mounted ANIF4 IP54 320x222x114 10TE
1x M25 cable gland at the bottom (cable diameter 13-18 mm PG21) grey
4x CEE socket 16A 3p 230V protected with 4x RCD/MCB 16A 2p C 30mA Typ A
RCD/MCB are made by ÖVE/VDE
distribution box is wired on Vario-Connector 3polig 10qmm
