Distribution box plastic mobile ST.ANTON 6F 3x32/5 2m5G6St32 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 6F 3x32/5 2m5G6St32 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399391354

Other Technical data

Colour	Black
Width	117 mm
Height	89 mm
Depth	202 mm
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	3x32A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

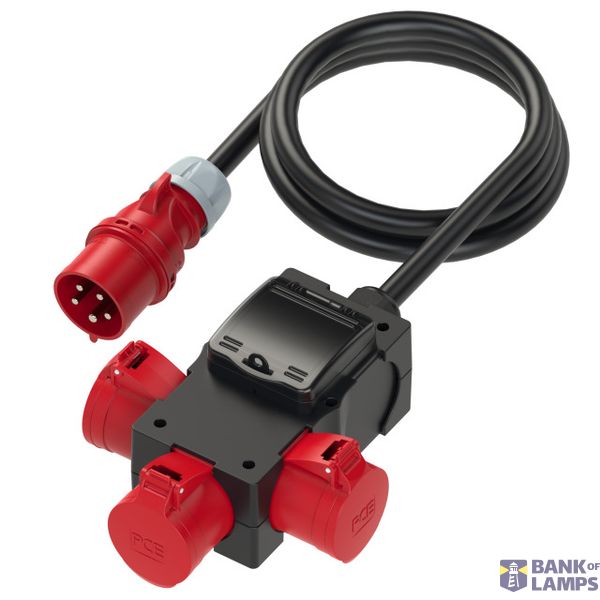

mobile thermoplastic distribution box, model St.Anton 6f IP44 89x202x117 4TE
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
3xCEE-socket 32A 5p 400V protected with pre-fuse of supply line
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
RCD is Eaton ÖVE / VDE branded
distribution box is ready wired for using
