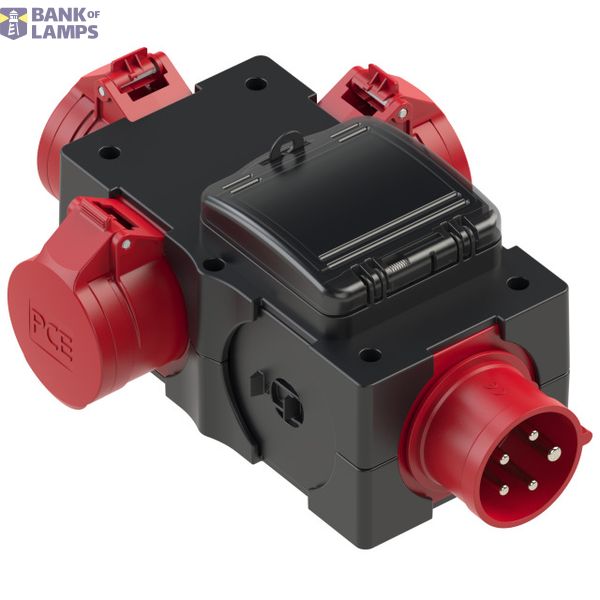

Distribution box plastic mobile ST.ANTON 6F 3x16/5 GS16/5 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 6F 3x16/5 GS16/5 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399388446

Other Technical data

Colour	Black
Width	117 mm
Height	89 mm
Depth	202 mm
Protection	None
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	3x16A5p400V
Power supply/connection possibility	Built-up plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

mobile thermoplastic distribution box, model St.Anton 6f IP44 89x202x117 4TE
1xCEE-plug 16A 5p 400V
3xCEE-socket 16A 5p 400V protected with pre-fuse of supply line
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
RCD is Eaton ÖVE / VDE branded
distribution box is ready wired for using
