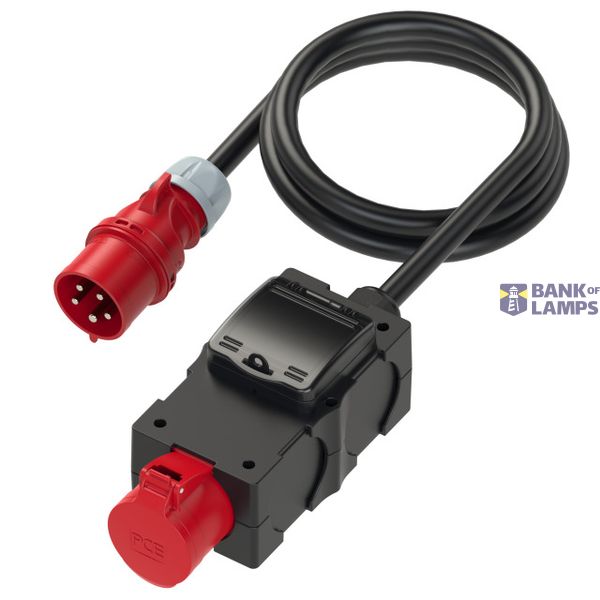

Distribution box plastic mobile ST.ANTON 6F 32/5 2m5G6St32 Zä IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 6F 32/5 2m5G6St32 IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399392283

Other Technical data

Colour	Black
Width	117 mm
Height	89 mm
Depth	202 mm
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 32 A	1x32A5p400V
Other fixtures and/or empty locations	1
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

thermoplastic distribution box model St.Anton 6f IP44 89x202x117 4TE
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
1xCEE-socket 32A 5p 400V protected with pre-fuse of supply line
1x three-phase meter DIGI MID 65A 400V 3p 4TE -25°..55°C 1,5-16² FINDER over all outlets
distribution box is ready wired for using
