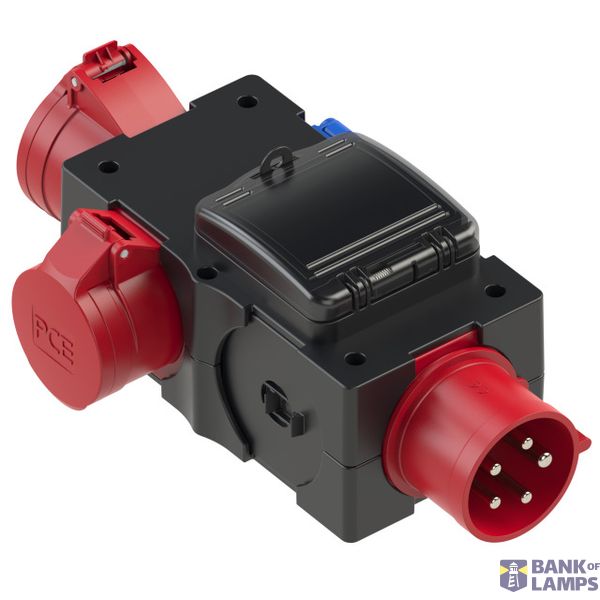

Distribution box plastic mobile ST.ANTON 6F 32/5 16/5 SSD GS32/5 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 6F 32/5 16/5 SSD GS32/5 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399349904

Other Technical data

Colour	Black
Width	117 mm
Height	89 mm
Depth	202 mm
Number of socket outlets with protective contact (type F)	1
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	Built-up plug
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

thermoplastic mobile distribution box model St.Anton 6f IP44 89x202x117 4TE
1xCEE-plug 32A 5p 400V
1xCEE-socket 32A 5p 400V protected with pre fuse of supply line
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
1xSK-socket 16A 250V IP54 fused with 1xMCB 16A 1p C
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
label: Additional protection required by RCCB on supply side
