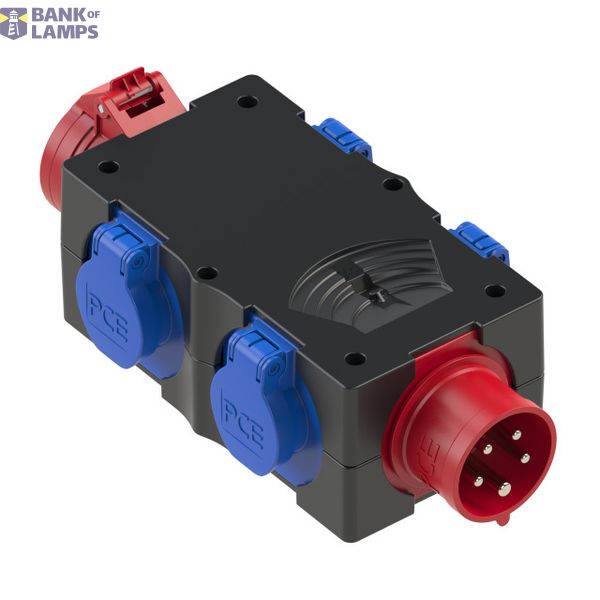

Distribution box plastic mobile ST.ANTON 6F 16/5 4xSSD GS16/5 IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 6F 16/5 4xSSD GS16/5 IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399388118

Other Technical data

Colour	Black
Width	117 mm
Height	89 mm
Depth	202 mm
Number of socket outlets with protective contact (type F)	4
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	Built-up plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

mobile thermoplastic distribution box, model St.Anton 6f IP44 89x202x117 0TE
1xCEE-plug 16A 5p 400V
1xCEE-socket 16A 5p 400V protected with pre-fuse of supply line
4xSK-sockets 16A 250V IP54 protected with pre-fuse of supply line
distribution box is ready wired for using
