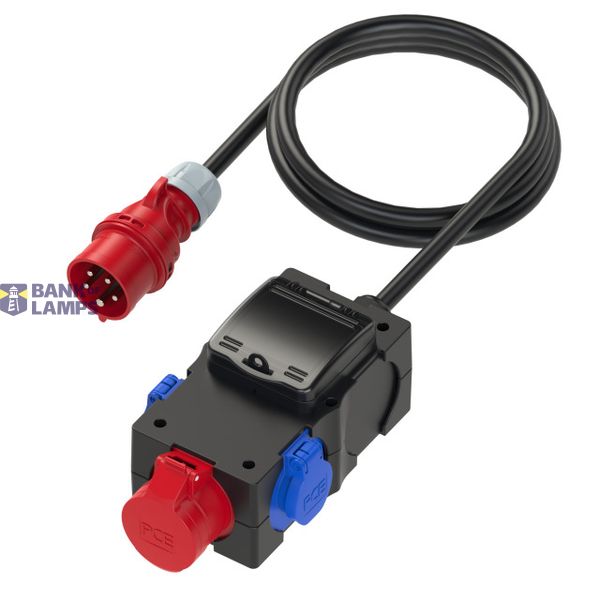

Distribution box plastic mobile ST.ANTON 6F 16/5 2xSSD 2m5G2St16 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 6F 16/5 2xSSD 2m5G2St16 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399391392

Other Technical data

Colour	Black
Width	117 mm
Height	89 mm
Depth	202 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

Mobiler Kunststoffverteiler Typ St.Anton 6f IP44 89x202x117 4TE
2m Kabel H07RN-F 5G2.5mm2 schwarz mit Stecker 16A 5p 400V
1xCEE-Steckdose 16A 5p 400V abgesichert d. Vorsicherung Zuleitung
2xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsicherung Zuleitung
1xFI 40A/4/0.03A (TYP A 25AT) über alle Ausgänge
FI Fabrikat Eaton ÖVE / VDE
Verteiler betriebsfertig angeschlossen
