Distribution box plastic mobile ST.ANTON 3xSSDbf 1.5m3G1.5H07St/SSD m.B IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 3xSSDbf 1.5m3G1.5H07St/SSD m.B IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399107634

Other Technical data

Colour	Black
Width	78 mm
Height	80 mm
Depth	115 mm
Number of socket outlets with protective contact (type F)	3
Cable length	1.5 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Protective contact (type F)

Downloads

Product data sheet

Description

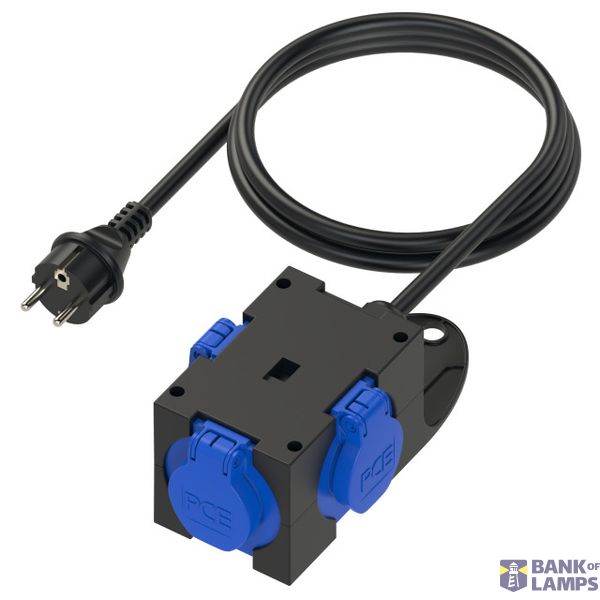

mobile distribution box - model ST.ANTON neu IP44 with handle
1,5m cable H07RN-F 3G1,5mm2 m. VG-plug 16A 2p+PE 230V
3xSK-socket 16A 250V IP44 belg/french unprotected
distribution box is wired on St.Anton clamping plate 3poles max.6qmm
