  • Distribution box plastic mobile ST.ANTON 3x16/5 1.5m5G1.5H07St16/5 m.B. IP44
MD01 image 1
PCE

Distribution box plastic mobile ST.ANTON 3x16/5 1.5m5G1.5H07St16/5 m.B. IP44

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Distribution box plastic mobile ST.ANTON 3x16/5 1.5m5G1.5H07St16/5 m.B. IP44
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC000379
Handling Portable
Contact material CuZn
Degree of protection (IP) IP44

Packing details

Packing level 1 9003399102073

Other Technical data

Colour Black
Width 115 mm
Height 80 mm
Depth 78 mm
Cable length 1.5 m
Protection None
Housing material Plastic
Earth leakage switch None
CEE socket outlet 16 A 3x16A5p400V
Power supply/connection possibility Feeder cable with plug
Type of mains connection CEE 16 A

Downloads

Product data sheet

Description

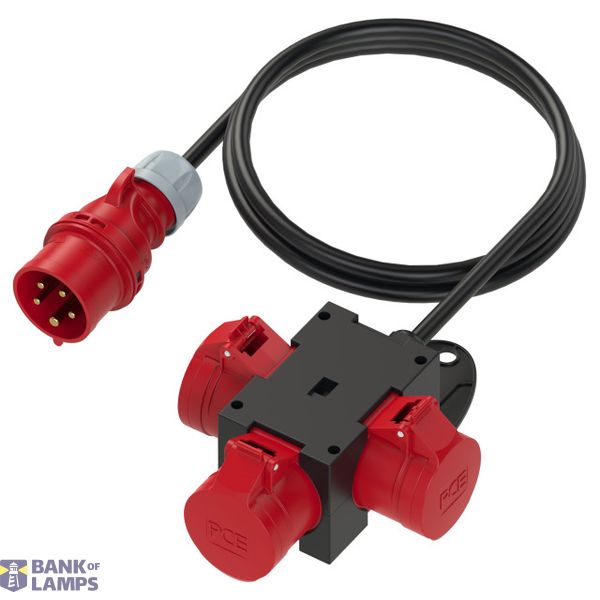

Distribution box, mobile, thermoplastic, series St.Anton IP44
1,5m cable H07RN-F 5G1,5mm² with plug 16A 5p 400V
3xCEE-Steckdose 16A 5p 400V not fused
Distribution box is ready wired for connection
