Distribution box plastic mobile ST.ANTON 3x16/4 9h 1.5m4G1.5H07St/16 m.B IP44

Name: Distribution box plastic mobile ST.ANTON 3x16/4 9h 1.5m4G1.5H07St/16 m.B IP44
Brand: PCE
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 3x16/4 9h 1.5m4G1.5H07St/16 m.B IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399968853

Other Technical data

Colour	Black
Width	78 mm
Height	80 mm
Depth	115 mm
Cable length	1.5 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	3x16A xp xxxV
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

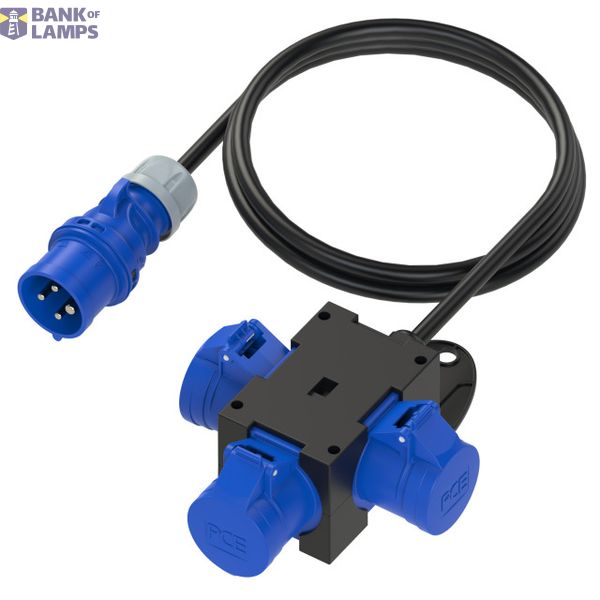

Insulated, thermoplastic distribution box - Series St. Anton IP44 with handle
entry: 1,5m cable H07RN-F 4x1,5 with CEE-plug 16A 4p 9h
outlet: 3xCEE-sockets 16A 4p 230V 9h unprotected
