Distribution box plastic mobile ST.ANTON 3x16/2 24V 1.5m2G2.5H07St16 m.B IP44

Name: Distribution box plastic mobile ST.ANTON 3x16/2 24V 1.5m2G2.5H07St16 m.B IP44
Brand: PCE
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 3x16/2 24V 1.5m2G2.5H07St16 m.B IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399100949

Other Technical data

Colour	Black
Width	78 mm
Height	80 mm
Depth	115 mm
Cable length	1.5 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	3x16A2p24V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

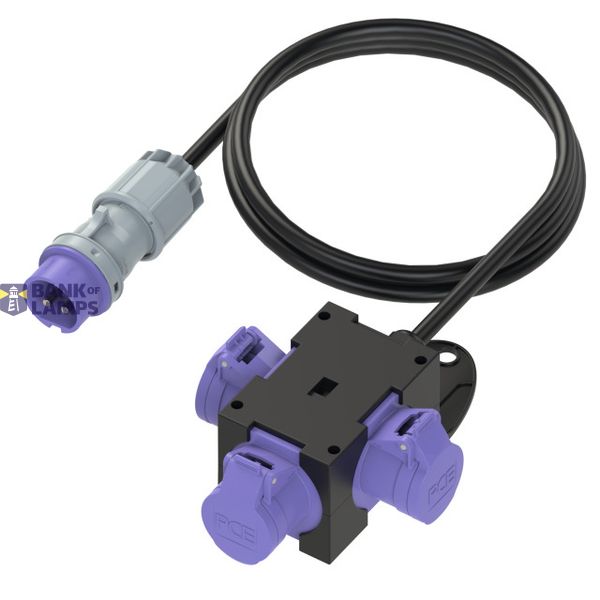

Mobile thermoplastic distribution box - series ST.ANTON IP44 with handle
1xCEE extra-low voltage plug 16A 2p 24V
1,5m cable H07RN-F 2x2,5mm2 black
3xCEE-socket 16A 2p 24V
distribution box is ready wired for using
