Distribution box plastic mobile ST.ANTON 2x16/3 SSD 1.5m3G1.5H07St16 m.B IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 2x16/3 SSD 1.5m3G1.5H07St16 m.B IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399101809

Other Technical data

Colour	Black
Width	78 mm
Height	80 mm
Depth	115 mm
Number of socket outlets with protective contact (type F)	1
Cable length	1.5 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A3p230V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

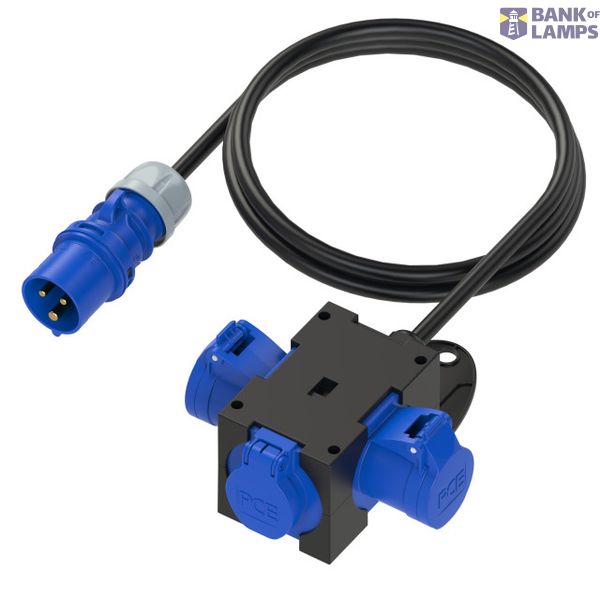

Mobile, insulated thermoplastic distribution box - Series St. Anton IP44 with handle
Entry: 1,5m cable H07RN-F 3G1,5mm² with plug 16A 3p 230V
Outlet: 2xCEE-sockets 16A 3p 230V unprotected
1xsocket 16A 250V IP44 unprotected
