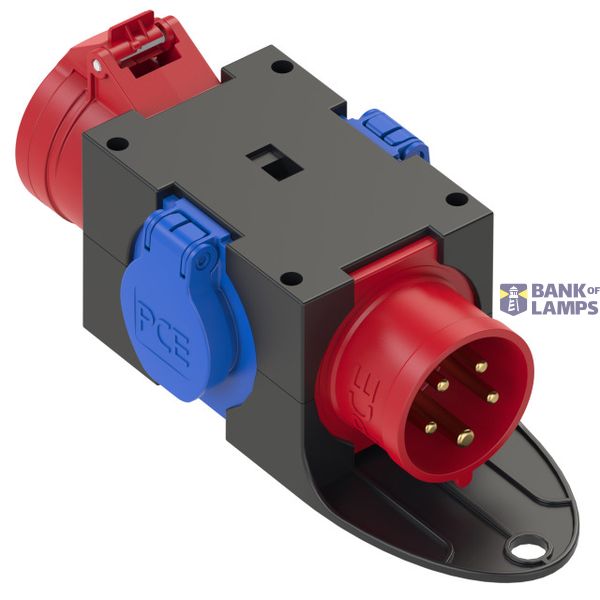

Distribution box plastic mobile ST.ANTON 16/5 2xSSDbf GS16/5 m.B. IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 16/5 2xSSDbf GS16/5 m.B. IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399107825

Other Technical data

Colour	Black
Width	78 mm
Height	80 mm
Depth	115 mm
Number of socket outlets with protective contact (type F)	2
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	Built-up plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

mobile distribution box series St. Anton IP44 with clamp
1x CEE plug 16A 5p 400V
1x CEE socket 16A 5p 400V without protection
2x Schuko socket 16A 250V IP54 belg/french without protection
distribution box is ready wired on for using
