Distribution box plastic mobile ST.ANTON 16/5 2xSSDbf 1.5m5G1.5H07S m.B IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ST.ANTON 16/5 2xSSDbf 1.5m5G1.5H07S m.B IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399107856

Other Technical data

Colour	Black
Width	78 mm
Height	80 mm
Depth	115 mm
Number of socket outlets with protective contact (type F)	2
Cable length	1.5 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

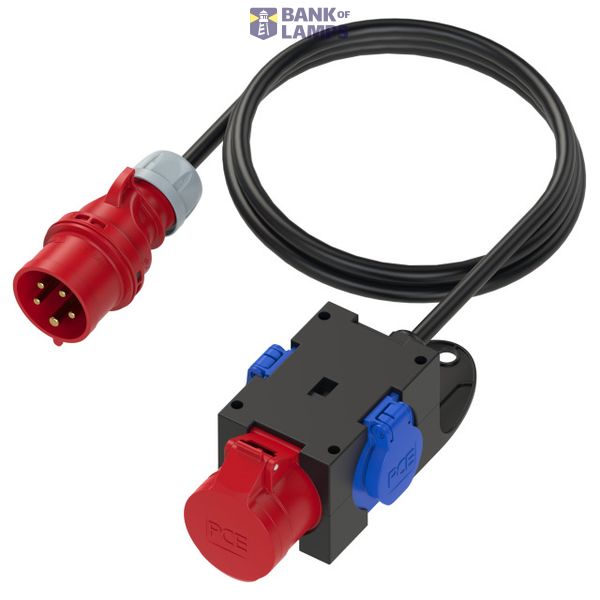

Description

mobile thermoplastic insulated distribtuion box series ST.ANTON new IP44 with shackle
1,5m cable H07RN-F 5G1,5mm² black with plug 16A 5p 400V
1xCEE-socket16A 5p 400V not fused
2xSK-socket16A 250V IP44 belg/french not fused
distribution box is ready wired for connection
