Distribution box plastic mobile Schwaz MV 2x16/5 4xSSD 2m5G2.5St16 GP IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile Schwaz MV 2x16/5 4xSSD 2m5G2.5St16 GP IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399140105

Other Technical data

Colour	Grey
Width	204 mm
Height	255 mm
Depth	114 mm
Number of socket outlets with protective contact (type F)	4
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

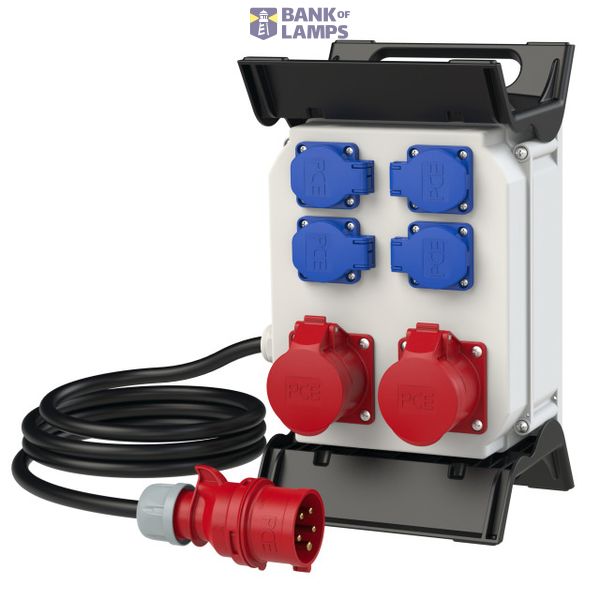

mobile plastic distribution box SCHWAZ IP54 with 2x handle plate
2m cable H07RN-F 5G2,5mm2 black with plug 16A 5p 400V
2xCEE socket 16A 5p 400V not protected
4xSSD socket 16A 250V IP54 not protected
distribution box ready wired and connected
