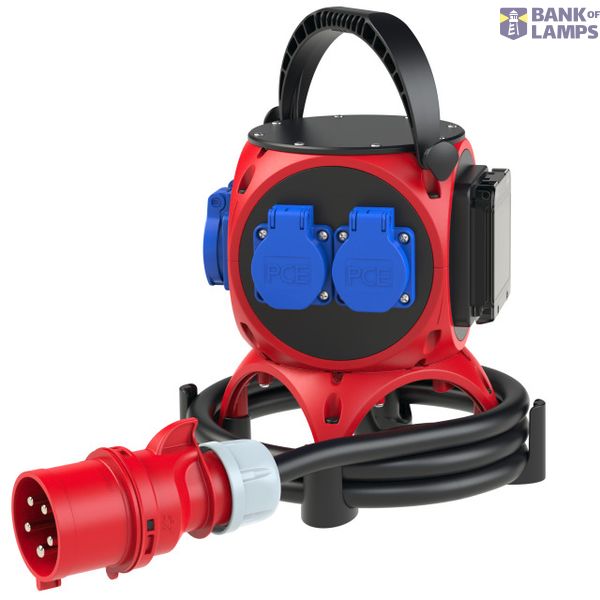

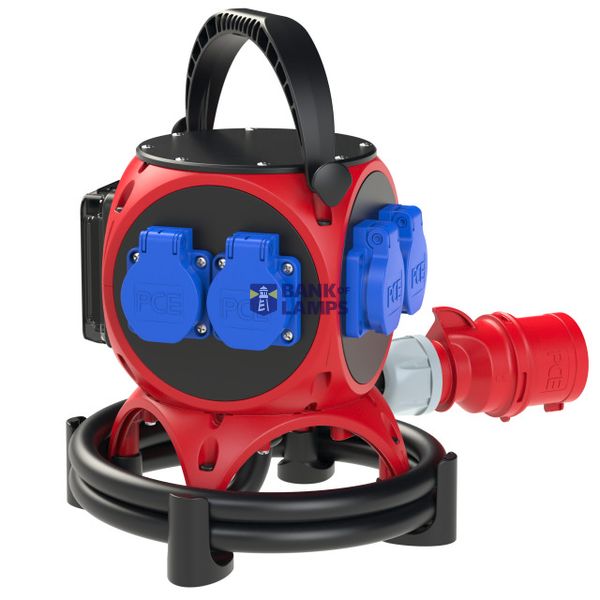

Distribution box plastic mobile PEGASUS MV 6xSSD 2m5G4St32/5 Ea R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile PEGASUS MV 6xSSD 2m5G4St32/5 Ea R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696626

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	6
Cable length	2 m
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	3
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

thermoplastic mobile distribution box model Pegasus IP44 140x140x240 4TE red
2m cable H07RN-F 5G4mm2 black with CEE-plug 32A 5p 400V
6xSK-sockets 16A 250V IP54 fused with 3xMCB`s 16A 1p C
MCB`s are PCE VDE branded
distribution box is ready wired for using
Label: "Additional protection required by RCCB on supply side is required!"
