Technical Information
| Item condition |
New |
| Manufacture name |
Distribution box plastic mobile PEGASUS MV 4xSSD 2m3G2.5VG-St R IP44 |
| Brand |
PCE
|
| Harmonized System Code |
8537 1098 00
|
| ETIM |
EC000379
|
| Handling |
Portable |
| Degree of protection (IP) |
IP44 |
Packing details
| Packing level 1 |
9003399696596 |
Other Technical data
| Colour |
Red |
| Width |
140 mm |
| Height |
240 mm |
| Depth |
140 mm |
| Number of socket outlets with protective contact (type F) |
4 |
| Cable length |
2 m |
| Protection |
None |
| Housing material |
Plastic |
| Earth leakage switch |
None |
| Power supply/connection possibility |
Feeder cable with plug |
| Type of mains connection |
Protective contact (type F) |
Downloads
Description

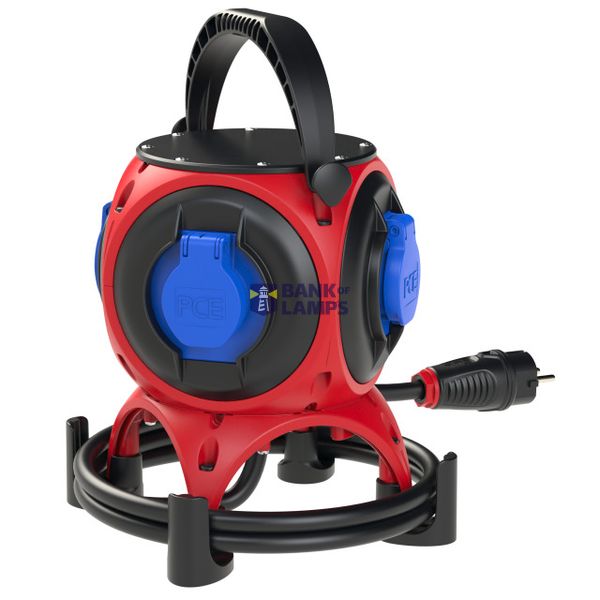

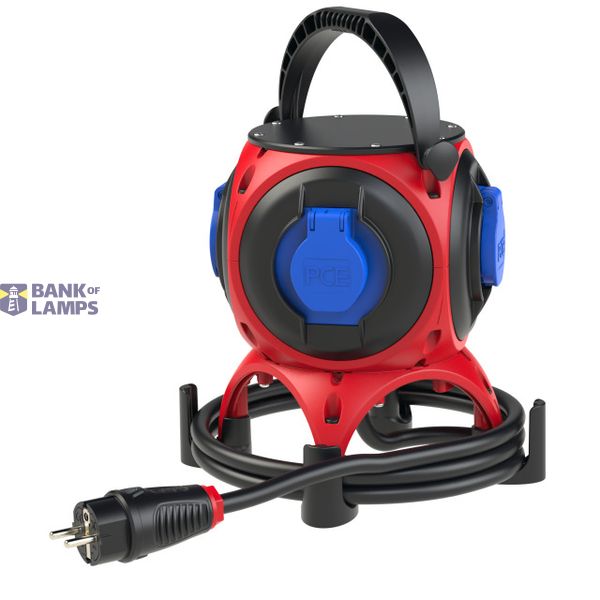

thermoplastic insulated distribution box - mobile series Pegasus IP44 140x140x240 0TE red
2 m cable H07RN-F 3G2.5mm2 with solid rubber plug 16A 2p+PE 230V
4 x shuko socket 16A 250V IP54 without protection
distribution box is ready wired for using
