Distribution box plastic mobile PEGASUS MV 2x16/5 2xSSD 2m5G2.5St16 R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile PEGASUS MV 2x16/5 2xSSD 2m5G2.5St16 R IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399692055

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

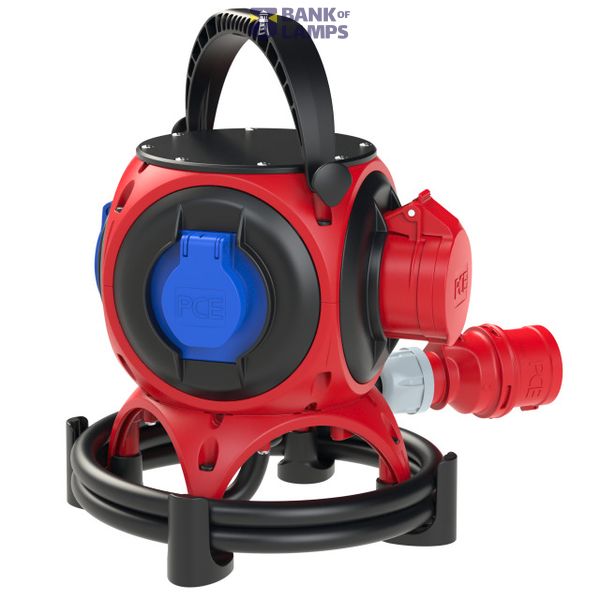

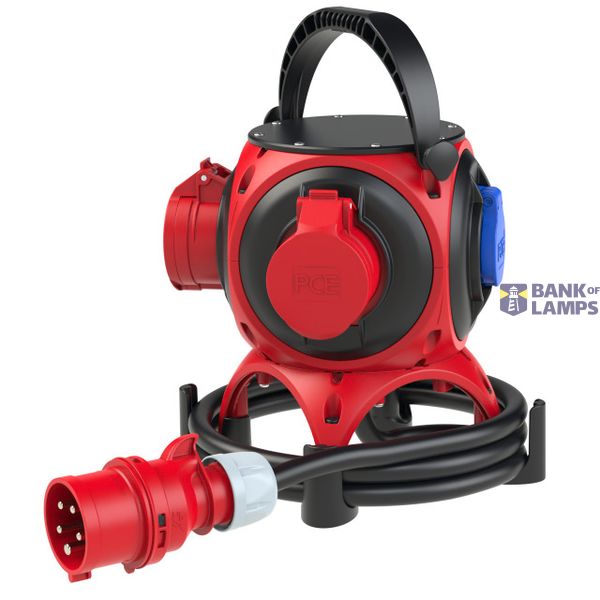

Pegasus MV 2x16/5 2xSSD 2m5G2.5St16 R
Insulated Thermoplastic distribution box - Series Pegasus IP44
Dimensions: 140x140x240 mm, without window, colour: red
Entry: 2m cable H07RN-F 5G2,5mm² with CEE-plug 16A 5p 400V
Outlet: 2xCEE-sockets 16A 5p 400V unprotected
Outlet: 2 sockets (DIN 49440) 16A 250V IP54 unprotected
Distribution box is ready wired for using
