Distribution box plastic mobile PEGASUS MV 16/5 2xSSD 2m5G4St32/5 Ea R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile PEGASUS MV 16/5 2xSSD 2m5G4St32/5 Ea R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696695

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	2
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

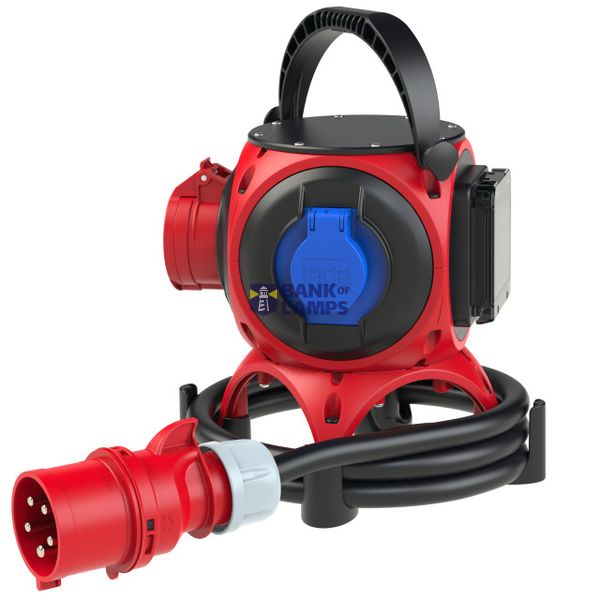

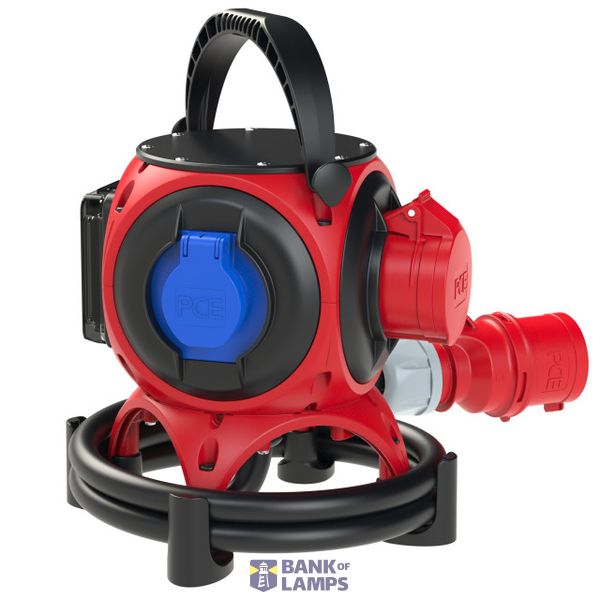

thermoplastic mobile distribution box model Pegasus IP44 140x140x240 4TE red
2m cable H07RN-F 5G4mm2 black with CEE-plug 32A 5p 400V
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
2xSK-sockets 16A 250V IP44 fused with 1xMCB 16A 1p C
MCB`s are PCE VDE branded
distribution box is ready wired for using
