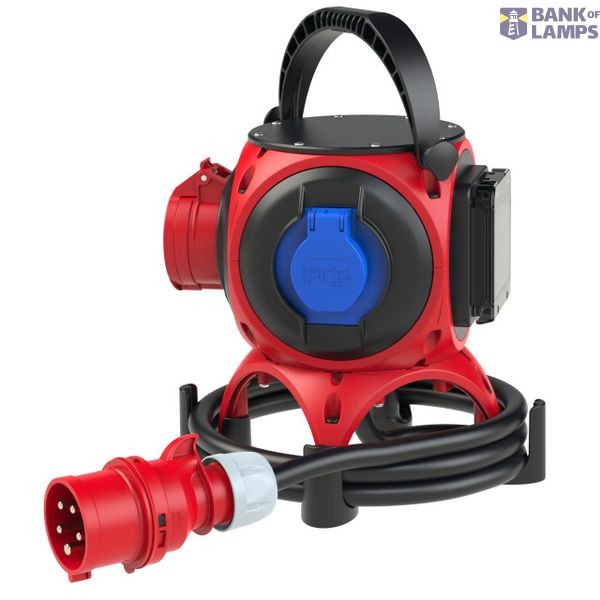

Distribution box plastic mobile PEGASUS BV 16/5 3xSSD 2m5G2.5St16 Ea R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile PEGASUS BV 16/5 3xSSD 2m5G2.5St16 Ea R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696732

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	3
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

Kunstst.-Mobilverteiler Modell Pegasus IP44 140x140x240 4TE rot
2m Kabel H07RN-F 5G2,5mm2 schwarz m. CEE-Stecker 16A 5p 400V
1xCEE-Steckdose 16A 5p 400V abgesichert d. Vorsicherung Zuleitung
3xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsicherung Zuleitung
1xFI 40A/4/0.03A (TYP A 25AT) über alle Ausgänge
FI Fabrikat Eaton ÖVE / VDE
Verteiler betriebsfertig angeschlossen
