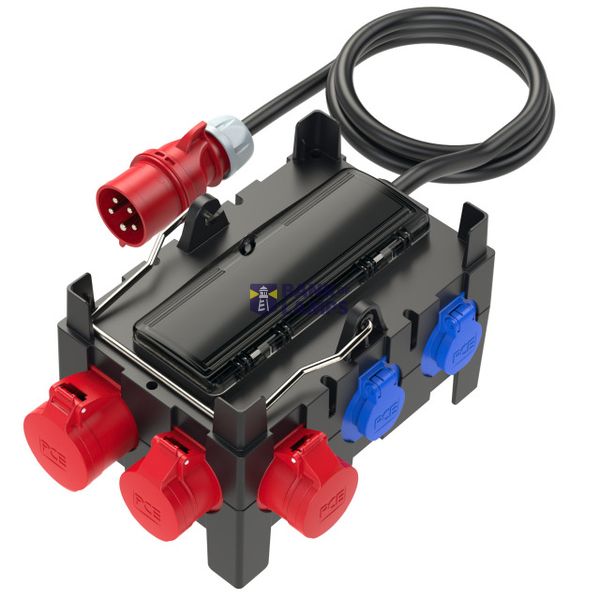

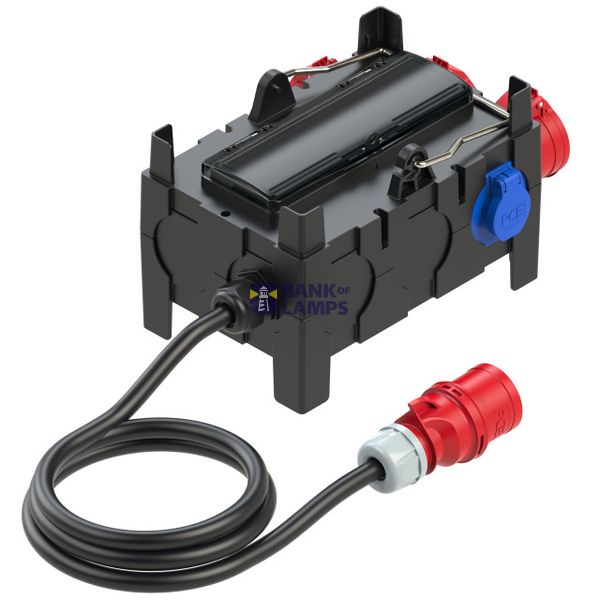

Distribution box plastic mobile ISCHL BV 32/5 2x16/5 3xSSD 2m5G6St32 Ea IP44
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box plastic mobile ISCHL BV 32/5 2x16/5 3xSSD 2m5G6St32 Ea IP44 |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Handling | Portable |
| Degree of protection (IP) | IP44 |
Packing details
| Packing level 1 | 9003399364044 |
Other Technical data
| Colour | Black |
| Width | 300 mm |
| Height | 200 mm |
| Depth | 200 mm |
| Number of socket outlets with protective contact (type F) | 3 |
| Cable length | 2 m |
| Protection | Overcurrent switch |
| Housing material | Plastic |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| CEE socket outlet 16 A | 2x16A5p400V |
| CEE socket outlet 32 A | 1x32A5p400V |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 4 |
| Type of mains connection | CEE 32 A |
Downloads
Description
thermoplastic mobile distribution box series ISCHL IP44 200x300x200 13TE
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
1xCEE-socket 32A 5p 400V protected over pre-fuse of supply line
2xCEE-socket 16A 5p 400V protected over 1xMCB 16A 3p C
3xSK-socket 16A 250V IP54 protected over 3xMCB 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB and RCD made by Eaton ÖVE / VDE
distribution box is ready wired for using
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
1xCEE-socket 32A 5p 400V protected over pre-fuse of supply line
2xCEE-socket 16A 5p 400V protected over 1xMCB 16A 3p C
3xSK-socket 16A 250V IP54 protected over 3xMCB 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB and RCD made by Eaton ÖVE / VDE
distribution box is ready wired for using
