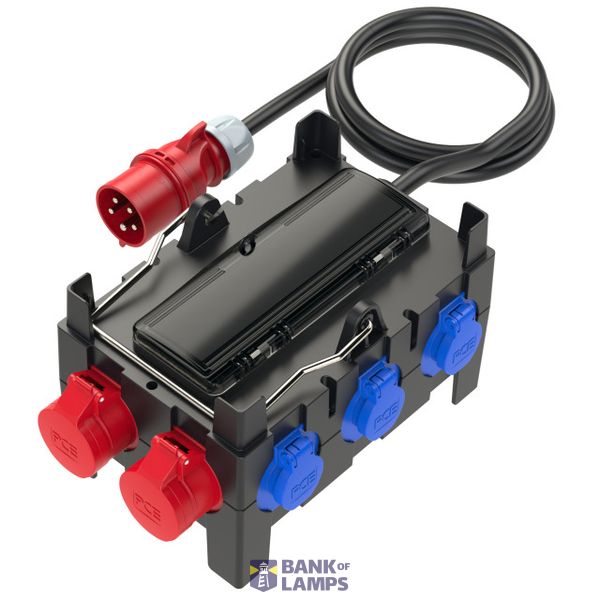

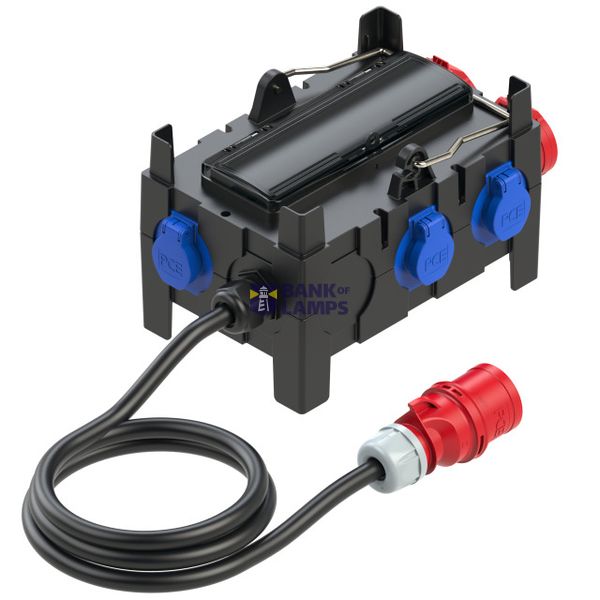

Distribution box plastic mobile ISCHL BV 2x16/5 6xSSD 2m5G6St32 H07 Ea IP44
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box plastic mobile ISCHL BV 2x16/5 6xSSD 2m5G6St32 H07 Ea IP44 |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Handling | Portable |
| Degree of protection (IP) | IP44 |
Packing details
| Packing level 1 | 9003399364372 |
Other Technical data
| Colour | Black |
| Width | 300 mm |
| Height | 200 mm |
| Depth | 200 mm |
| Number of socket outlets with protective contact (type F) | 6 |
| Cable length | 2 m |
| Protection | Overcurrent switch |
| Housing material | Plastic |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| CEE socket outlet 16 A | 2x16A5p400V |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 4 |
| Type of mains connection | CEE 32 A |
Downloads
Description
thermoplastic wall mounted distributon box model ISCHL IP44 200x300x200 13TE
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
2xCEE-sockets 16A 5p 400V fused with 1xMCB 16A 3p C
6xSK-sockets 16A 250V IP54 fused with 3xMCB`s 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
2xCEE-sockets 16A 5p 400V fused with 1xMCB 16A 3p C
6xSK-sockets 16A 250V IP54 fused with 3xMCB`s 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
