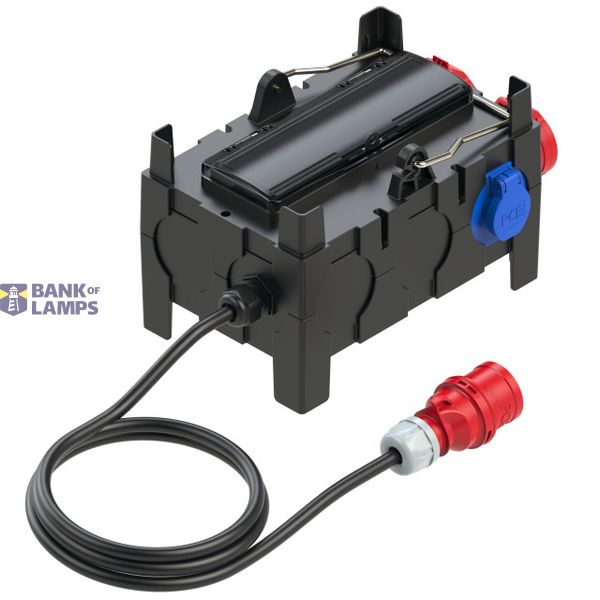

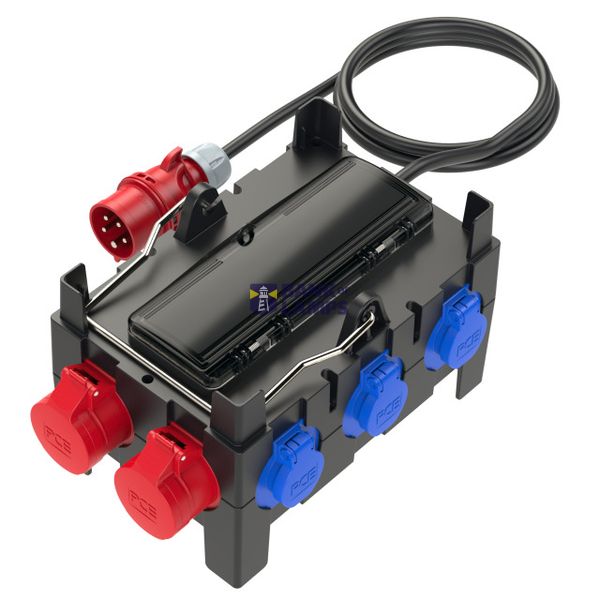

Distribution box plastic mobile ISCHL BV 2x16/5 4xSSD 2m5G2.5St16 H07 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ISCHL BV 2x16/5 4xSSD 2m5G2.5St16 H07 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399364457

Other Technical data

Colour	Black
Width	300 mm
Height	200 mm
Depth	200 mm
Number of socket outlets with protective contact (type F)	4
Cable length	2 m
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

Kunstst.-Mobilverteiler Modell ISCHL IP44 200x300x200 13TE
2m Kabel H07RN-F 5G2,5mm2 schwarz mit Stecker 16A 5p 400V
2xCEE-Steckdose 16A 5p 400V abgesichert d. Vorsicherung Zuleitung
4xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsicherung Zuleitung
1xFI 40A/4/0.03A (TYP A 25AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler betriebsfertig angeschlossen
