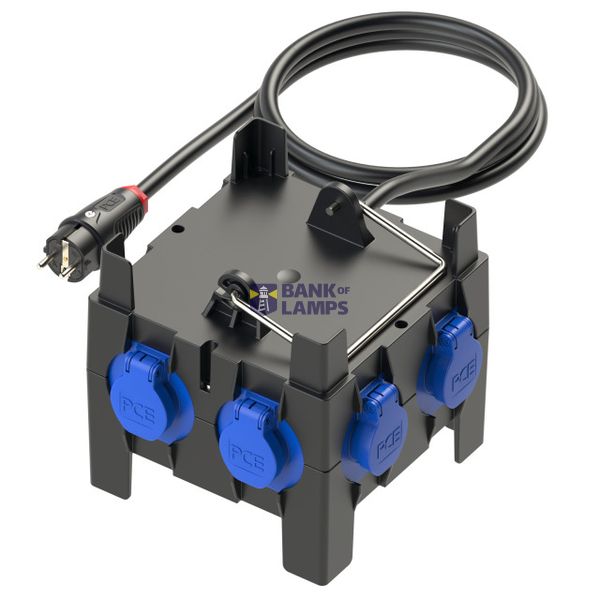

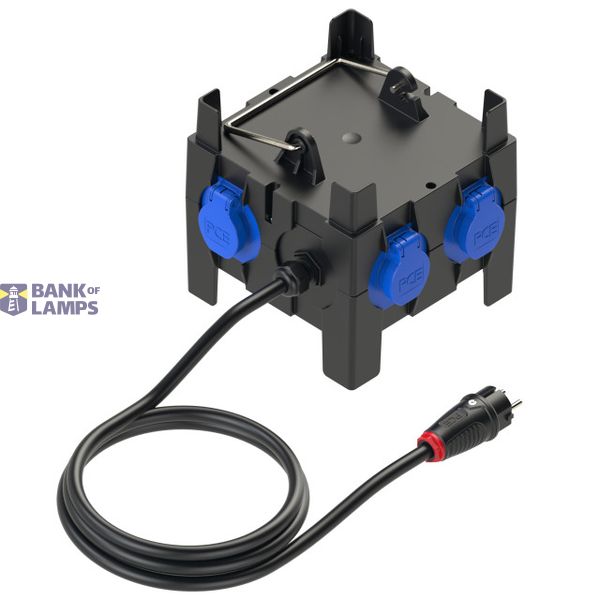

Distribution box plastic mobile IMST MV 7xSSD 2m3G2.5 VG-St VC o.LS/Fi S IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile IMST MV 7xSSD 2m3G2.5 VG-St VC o.LS/Fi S IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399103896

Other Technical data

Colour	Grey
Width	197 mm
Height	200 mm
Depth	197 mm
Number of socket outlets with protective contact (type F)	7
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Protective contact (type F)

Downloads

Product data sheet

Description

Mobile thermoplastic distribution box, series IMST IP44 197x197x200 0TE black
2m cable H07RN-F 3G2,5mm2 black with solid rubber-plug 16A 250V
7xSSD safety socket (DIN49440) 16A 2p+PE 250V unprotected
Distribution box ready wired and tested for use
