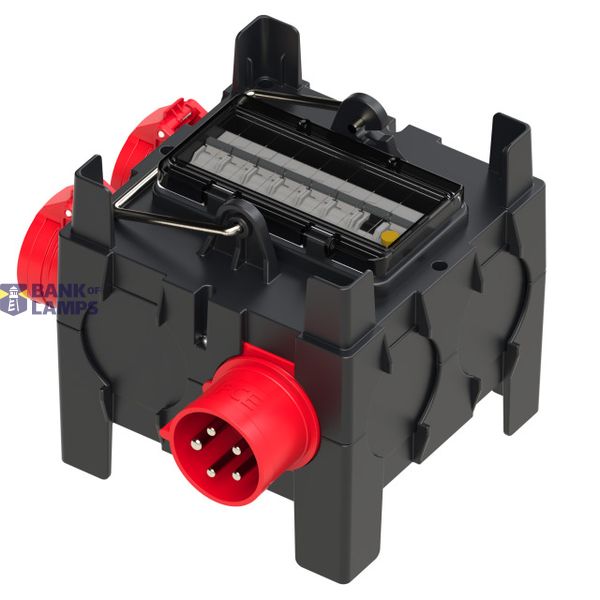

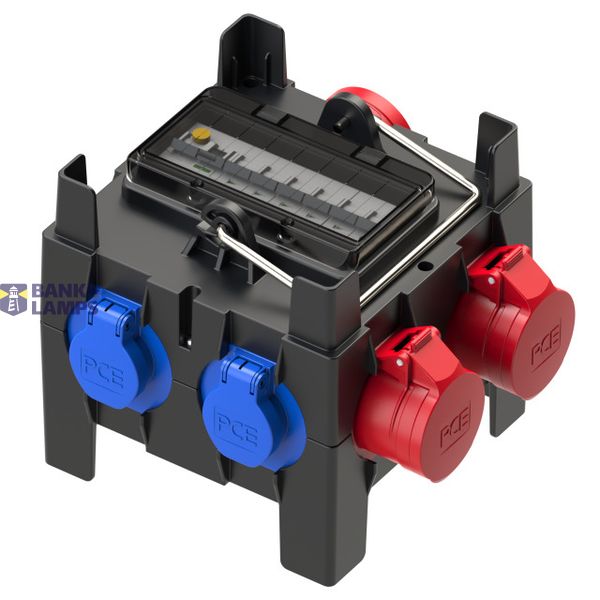

Distribution box plastic mobile IMST MV 2x16/5 2xSSD GS32/5 oFI-mLS Ea S IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile IMST MV 2x16/5 2xSSD GS32/5 oFI-mLS Ea S IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399103926

Other Technical data

Colour	Grey
Width	197 mm
Height	200 mm
Depth	197 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Built-up plug
Number of miniature circuit breakers	4
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

Kunstst.-Mobilverteiler Modell IMST IP44 197x197x200 8TE sw
1xCEE-Gerätestecker 32A 5p 400V
2xCEE-Steckdose 16A 5p 400V abgesichert ü. 2xLS 16A 3p C
2xSK-Steckdose 16A 250V IP54 abgesichert ü. 2xLS 16A 1p C
Leitungsschutzschalter Fabrikat Eaton ÖVE / VDE
Verteiler anschlußfertig verdrahtet
Etikett: "Zusatzschutz durch FI-Schutzschalter versorgungsseitig erforderlich!"
